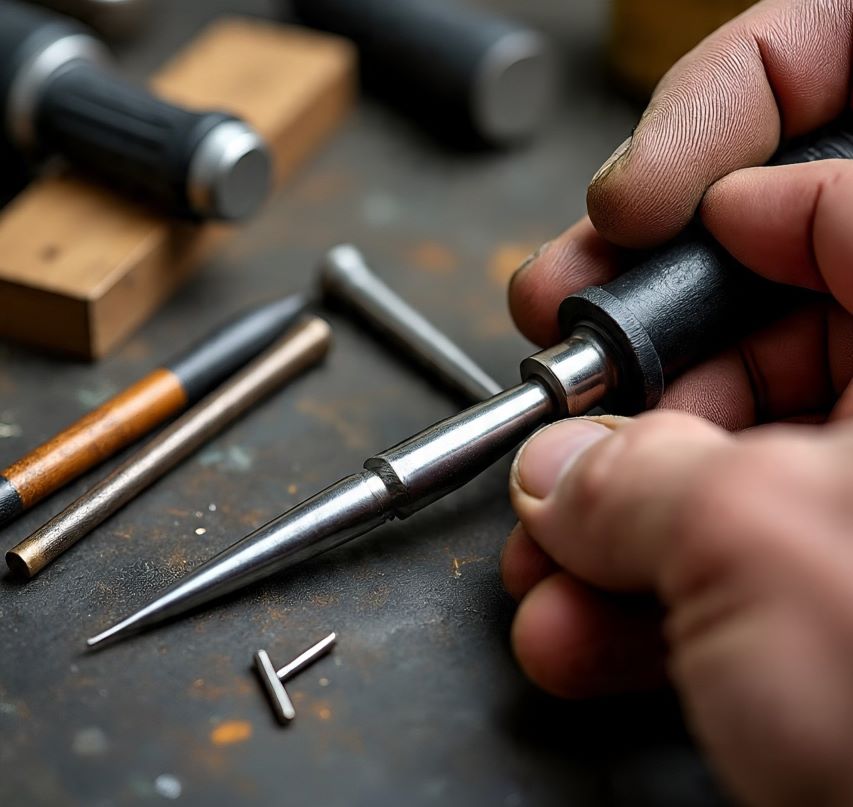

A spring nail punch (also called an automatic punch, self-setting punch, or nail setter) is a specialized hand tool designed to drive finish nails or brads below the surface of wood (countersinking) without damaging the surrounding material. It automates the striking action using internal springs, making it faster and easier to use than a standard nail punch.
Core Purpose:
To countersink small nails (finish nails, brads) quickly, consistently, and cleanly.
To protect the wood surface from hammer marks.
To allow putty or filler to be applied smoothly over the nail hole.
Key Components & How It Works:
Hollow Barrel/Body: Houses the internal spring mechanism.
Spring-Loaded Plunger/Shaft: The internal rod that transmits force to the nail.
Adjustable Depth Stop (on most models): A rotating collar or screw that sets how far the nail is driven below the surface.
Tip/Punch End: A hardened, precisely sized tip (often interchangeable) that fits the nail head snugly to prevent slipping.
Striking Head: The top surface designed to be hit with a hammer.
Mechanism (The "Spring" Action):
Place & Press: Position the punch tip squarely on the nail head. Press the tool down firmly against the nail and wood surface. This compresses the internal spring and retracts the plunger/striking head upwards within the barrel.
Strike: Tap the exposed striking head with a hammer.
Drive: The force of the hammer blow is transferred through the plunger, driving the nail down.
Reset: Releasing pressure allows the internal spring to push the plunger/striking head back down to its original position, ready for the next nail.
Types & Variations:
Standard Spring Punch: Requires pressing down and a hammer strike (most common).
Auto-Return Punch: Similar mechanism, emphasizes the plunger's automatic reset.
Interchangeable Tips: Many models come with multiple tip sizes (e.g., 1/32", 2/32", 3/32") to match different nail head diameters.
Depth Adjustment: Crucial for consistent countersinking depth across different projects.
Advantages:
Speed & Efficiency: Dramatically faster than a standard punch, especially for large numbers of nails.
Consistency: The depth stop ensures every nail is set to the exact same depth.
Reduced Fatigue: Eliminates the need to precisely hold and repeatedly strike a tiny standard punch.
Accuracy: The hollow tip centers itself perfectly on the nail head, minimizing slips.
Surface Protection: Prevents accidental hammer dings on the workpiece.
Easier for Beginners: Much simpler to use effectively than a traditional punch.
Disadvantages & Limitations:
Bulkiness: Larger than a standard punch, can be awkward in very tight spaces.
Spring Wear/Failure: Internal springs can weaken or break over time with heavy use.
Cost: More expensive than a simple standard nail punch.
Nail Size Limitation: Primarily designed for small finish nails and brads (up to ~2.5 inches / 6cm). Not suitable for large framing nails.
Requires Hammer: Still needs a hammer to function (not impact-driver compatible).
Typical Applications:
Installing trim (baseboards, crown molding, casing, shoe molding).
Cabinet assembly and installation.
Furniture building and repair.
Picture framing.
Any woodworking project requiring concealed nail heads.
Using a Spring Nail Punch Effectively:
Select Tip: Choose the tip size that best fits the nail head.
Set Depth: Adjust the depth stop collar to your desired countersink depth (e.g., 1/16" below surface).
Position: Place the tip squarely on the nail head. Apply firm downward pressure to compress the spring.
Strike: Give the exposed striking head a firm, controlled tap with a hammer (a 10-16oz hammer is typical).
Release & Repeat: Release pressure, move to the next nail.
Buying Considerations:
Tip Size Range: Ensure it covers the nail sizes you commonly use.
Depth Adjustment: Must be easy to set and hold securely.
Build Quality: Look for hardened steel construction, especially the tip and striking head.
Spring Quality: A robust spring is critical for longevity.
Comfort/Grip: Ergonomic handle is beneficial for extended use.
A spring nail punch is an essential productivity tool for carpenters, cabinetmakers, and serious DIYers working extensively with finish nails. It trades a bit of bulk and cost for significant gains in speed, consistency, and ease of use when countersinking nails. For occasional use or extremely confined spaces, a standard punch might suffice, but for efficiency on trim or furniture, the spring punch is hard to beat. Always ensure the tip size matches your nail!
 |  |  |
 |  |  |
