The Discreet Sentinel

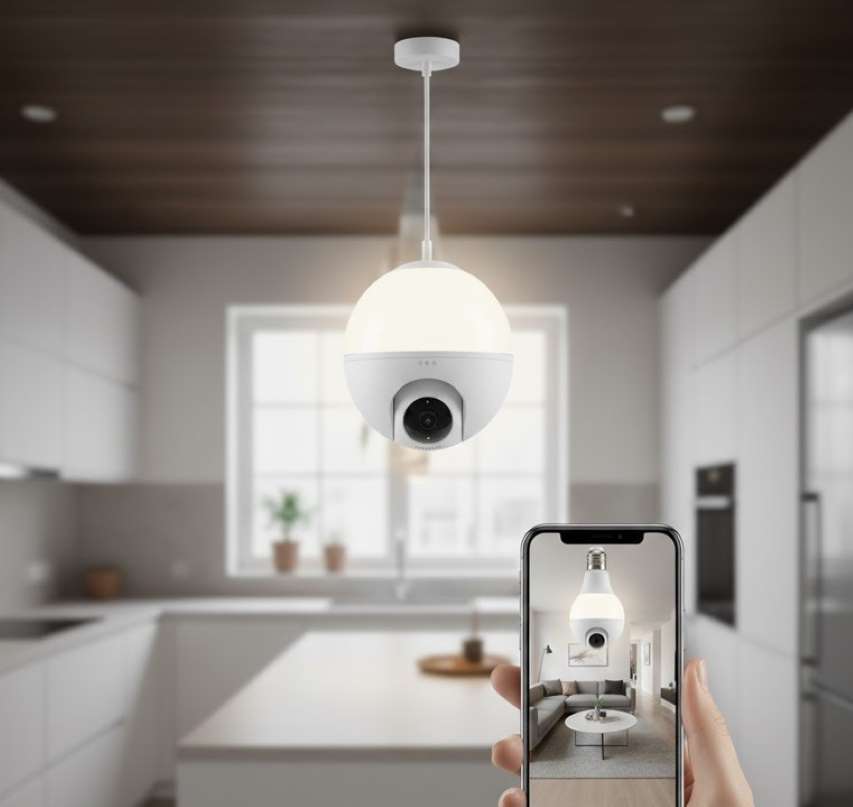

A Bulb with A Camera, commonly called a Smart Bulb Camera or Security Light Camera, is a dual-purpose device that combines a functional LED light bulb with a hidden surveillance camera. It offers a seamless and inconspicuous security solution by replacing an existing light fixture while providing intelligent monitoring capabilities. This innovation blends everyday home infrastructure with modern smart home security.
How It Works: Dual-Function Technology
The device integrates two core systems into a single unit:
Lighting System: A standard LED bulb with various capabilities (dimming, color temperature change, schedules).
Surveillance System: A miniaturized camera, microphone, speaker, and wireless module embedded in the bulb's base or housing.
The systems work independently or in tandem, controlled via a smartphone app.Core Workflow:
Installation: Screw the bulb into any standard light socket (E26/E27 base is most common).
Power: The socket provides continuous power, eliminating battery concerns.
Connection: The bulb connects to home Wi-Fi, linking it to a dedicated app.
Operation: Users control lighting and access live video/recordings remotely via the app.
Automation: Features like motion-activated recording or light turning on upon detection can be enabled.
Key Components & Internal Architecture
Component | Function & Details |
|---|---|
LED Light Array | Provides illumination. Often includes adjustable brightness and color (white spectrum or RGB). |
| Camera Lens & Sensor | A wide-angle lens (usually 110°-360°) with a CMOS sensor. Resolution typically ranges from 1080p to 2K/4K. |
| Microphone & Speaker | Enables two-way audio communication, allowing you to listen and speak through the app. |
PIR Motion Sensor | Detects heat and movement, triggering alerts and recordings more accurately than pixel-based detection. |
Wi-Fi Module | Connects the bulb to your home network (2.4GHz band is standard, some support 5GHz). |
Processing Unit | Handles video encoding, motion detection algorithms, and smart features. |
Light Socket Base | Standard Edison screw base (E26/E27) or Bayonet (B22). Crucially, it provides both power and a mounting point. |
Primary Features & Capabilities
Surveillance & Security Features:
Live HD Streaming: View real-time footage from the smartphone app anytime.
Motion Detection & Alerts: Receive instant phone notifications when movement is detected.
Night Vision: Infrared (IR) LEDs provide clear black-and-white video in low-light or total darkness.
Two-Way Audio: Communicate with anyone in the room (e.g., greet a visitor or deter an intruder).
Local/Cloud Storage: Record video to a microSD card or subscription-based cloud storage.
Person/Package Detection: Advanced AI can distinguish between people, animals, vehicles, and packages.
Lighting Features:
Remote On/Off & Scheduling: Control the light from anywhere, set schedules, or link to other smart devices.
Brightness & Color Control: Adjust light warmth or color for ambiance or security.
Motion-Activated Light: The light can turn on automatically when motion is sensed, acting as a security floodlight.
Smart Home Integration:
Voice Control: Works with Amazon Alexa, Google Assistant, and sometimes Apple HomeKit.
Automations: Create routines (e.g., "If motion is detected after sunset, turn on light and start recording").
Types & Form Factors
Type | Description | Best For |
|---|---|---|
| Standard Bulb Camera | Resembles a regular bulb; camera is discreetly placed in the center or around the base. | Indoor use in lamps, ceiling fixtures, porch lights. |
| Floodlight Camera | Larger, rectangular design with high-lumen LEDs. Camera is prominently integrated. | Outdoor security for driveways, backyards, garages. |
| Panoramic/Bullet Bulb | Features a 360-degree rotating camera housed in a bulb-like form. | Central indoor locations for complete room coverage. |
| Color-Changing Smart Bulb | Combines full RGB color lighting with a camera, prioritizing discretion. | Nurseries, living rooms where dual functionality is desired. |
Installation & Setup Considerations
Step-by-Step Guide:
Power Off: Always turn off the electricity at the circuit breaker for the light socket.
Remove Old Bulb: Unscrew the existing bulb.
Install Bulb Camera: Screw the new bulb camera firmly into the socket.
Restore Power: Turn the electricity back on.
App Configuration: Download the manufacturer's app, create an account, and follow in-app instructions to connect the bulb to Wi-Fi.
Critical Considerations:
Socket Position: The bulb must be always on at the switch to power the camera. Choose a socket controlled by a switch you can leave permanently on.
Wi-Fi Strength: Ensure strong Wi-Fi signal at the installation point. Weak signal causes disconnections.
Height & Angle: Install at a height and angle that provides the desired field of view, considering the camera's fixed or adjustable lens.
Indoor vs. Outdoor: Only use bulbs rated for outdoor use (with proper IP waterproof ratings like IP65) in exterior locations.
Advantages & Benefits
Discreet & Covert: The ultimate hidden camera; appears as a normal, functional light bulb.
Easy Installation: No wiring or drilling required beyond a standard light socket.
Cost-Effective: Combines two devices (light + camera) into one purchase and installation point.
Continuous Power: No need to charge batteries, enabling 24/7 monitoring.
Versatile Placement: Utilizes existing light fixtures, allowing for strategic placement (porches, garages, nurseries, hallways).
Deterrent & Illumination: The light itself can deter intruders, and motion-activated lighting adds security.
Privacy, Security & Legal Concerns
Data Security: Ensure the device and app use strong encryption (e.g., TLS, AES). Research the manufacturer's reputation for data handling.
Network Security: A vulnerable IoT device can be a gateway into your home network. Use a strong, unique password and enable firmware updates.
Privacy Laws: It is illegal to record audio or video in areas with a "reasonable expectation of privacy" (bathrooms, bedrooms, guest rooms) without consent. Laws vary by state/country.
Informed Consent: Inform household members and visitors if they are being recorded in common areas, as required by many local laws.
Limitations & Drawbacks
Fixed Perspective (mostly): Most cannot pan/tilt remotely; the view is determined by how you screw it in.
Wi-Fi Dependency: Vulnerable to internet outages and signal interference.
Potential Overheating: Combining a camera and bright LED in a sealed unit can lead to heat issues, potentially reducing lifespan.
Subscription Costs: Advanced features like intelligent alerts and cloud video history often require monthly fees.
Physical Security: Since it's accessible, it could be unscrewed by an intruder if within reach.
Buyer's Guide: Key Selection Criteria
Resolution & Field of View: 1080p is standard; 2K+ provides clearer detail. FOV of 130°+ is recommended for good coverage.
Indoor/Outdoor Rating: Check the IP rating for outdoor use (IP65 or higher is weatherproof).
Storage Options: Prefer models with both local (microSD) and optional cloud storage.
Light Quality & Features: Consider lumens (brightness), color temperature options, and dimming if lighting is important.
App & Ecosystem: Test the app's user interface and reliability. Check for desired smart home integrations.
Subscription Model: Understand what features are free vs. paid, and the cost of cloud storage plans.
Brand Reputation: Choose reputable brands with regular firmware updates and good customer support.
A Light on Security
The Smart Bulb Camera is a clever fusion of utility and vigilance, perfectly suited for the smart home era. It democratizes home security by offering an approachable, feature-rich, and unobtrusive monitoring solution. While not a complete replacement for a dedicated, multi-camera security system, it excels as a discrete entry-point camera, a versatile baby or pet monitor, or a convenient way to add an extra pair of eyes to any room with a light socket. As with all connected devices, responsible use—prioritizing network security and respecting privacy laws—is paramount. When chosen and installed thoughtfully, it provides both peace of mind and practical illumination.
 |  |  |
 |  |  |
